VoltTitan Core Power Protection Technology

280+ patents across online UPS topology, battery management, power conditioning, and SCADA integration. Engineering specifications backed by independent third-party test data.

Online Double-Conversion Topology (VFI)

Every VoltTitan UPS operates in Voltage and Frequency Independent (VFI) mode per IEC 62040-3 Class 1. Incoming AC is continuously rectified to DC, conditioned through our IGBT inverter stage, and reconverted to clean sinusoidal AC output — isolating your critical load from all upstream power disturbances.

Transfer Time 0 ms (no break)
Output THD < 1% linear, < 3% non-linear
VFI Efficiency Up to 97.2%
Input PF > 0.99 with Active PFC
VoltTitan online double-conversion UPS topology diagram

Advanced IGBT Inverter Stage

Our sixth-generation IGBT inverter platform utilizes three-level NPC (Neutral Point Clamped) topology with 20kHz PWM switching frequency. This architecture reduces output harmonic distortion while maintaining thermal headroom for sustained operation at rated load in ambient temperatures up to 45 degrees Celsius.

  • Three-level NPC topology for reduced dv/dt stress
  • 20kHz PWM switching frequency
  • Redundant gate driver circuits with optical isolation
  • Integrated thermal monitoring with predictive derating
  • Parallel operation up to 8 units without communication bus

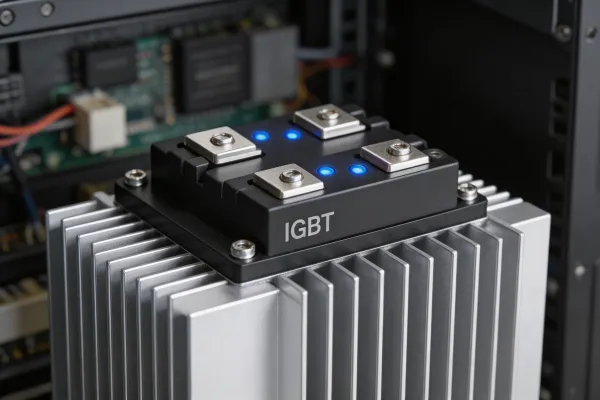

VoltTitan IGBT inverter module

Intelligent Battery Management System

Battery failure accounts for over 35% of UPS-related downtime events. VoltTitan BMS continuously monitors individual battery block impedance, temperature, and state of charge — generating predictive replacement alerts 90 days before capacity degradation reaches critical thresholds.

  • Per-block impedance monitoring at 1kHz test frequency
  • Temperature-compensated charging algorithm (IUoU)
  • Automated battery health reports via SNMP v3
  • Support for VRLA, Li-ion (LFP/NMC), and Ni-Cd chemistries
  • Remaining runtime prediction accuracy: +/- 3%

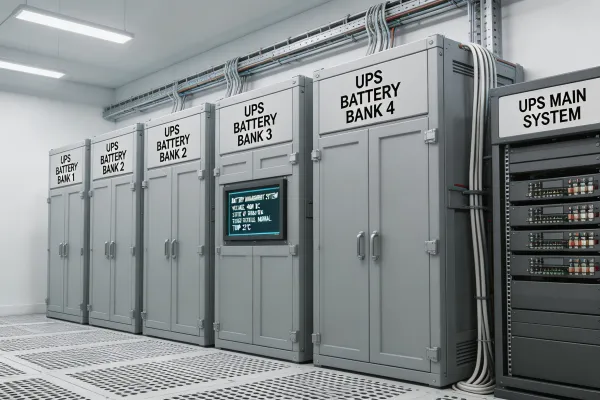

VoltTitan intelligent battery management system

Native SCADA & IIoT Connectivity

Every VoltTitan UPS ships with embedded communication interfaces — no external gateways required.

Modbus TCP/RTU

Standard on all units. Full register map published. Compatible with Schneider, Honeywell, and Johnson Controls BMS platforms.

SNMP v3

Encrypted monitoring with SHA-256 authentication. Compatible with PRTG, Nagios, SolarWinds, and DCIM platforms.

IEC 61850

Available on TitanGuard 100kVA+ models. GOOSE messaging for protection coordination with utility switchgear.

Dry Contact / Relay

Programmable relay outputs for integration with legacy fire alarm, generator ATS, and building management systems.

Access Complete Technical Documentation

Download product datasheets, application notes, white papers, and CAD drawings. All documentation includes full IEC and UL test data references.
